Plate And Frame Stainless Steel Filter Press For Juice Fruit Fine Filtration

Product Categories
YuZhou YuWei Filter Equipment Co., Ltd.
Contact Now

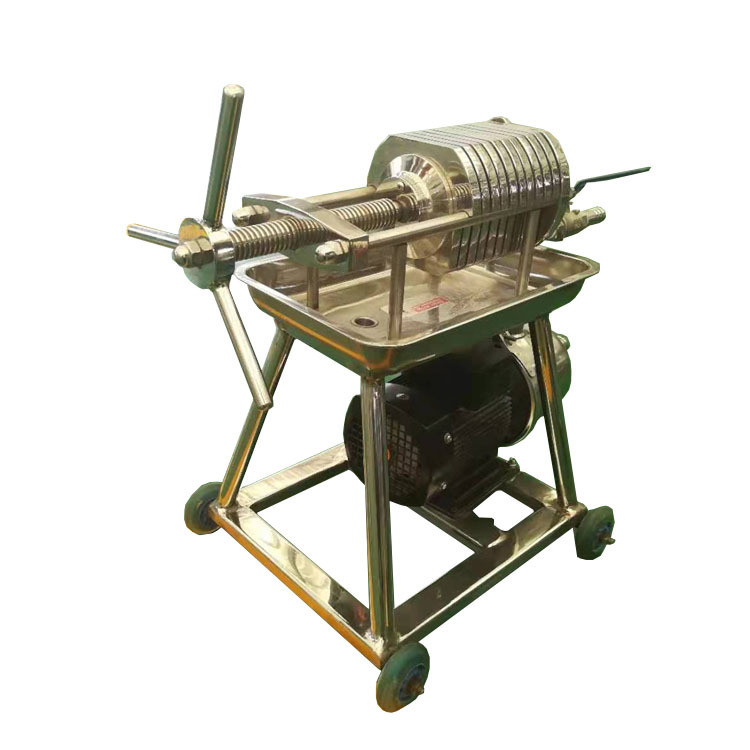

Plate And Frame Stainless Steel Filter Press For Juice Fruit Fine Filtration

Brand Name : Yuwei

Model Number : YWGMZ

Certification : CE / ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 10-20 work days

Packaging Details : wooden case, bubble wrap

Product Name : Small SS Filter Press

Material : 304/316L

Feed Pressure : 0.6 MPa

Type : Fame and Plate

Plate Material : SS316/304

Filter Precision : 0.22/0.45 micron

Plate Shifting : Manual

Contorl Method : PLC

Beam : SS304/316

Close Method : Mechanical

Contact Now

Filtration Equipment Stainless Steel Filter Press

With the goal of energy saving and emission reduction, the solid and liquid separation is a good helper for users, it is applied for separating the solid and the liquid of many materials such as cassava, garlic, fruit and food waste etc. The final product can be used as fertilizer directly. The equipment control system is easy to operate and convenient to install.

Model Filter press Plate size Cake thickness Filter chamber volume Plate NO Filtration pressure Motor power Weight Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
X_M^AG30/870−U_K^B 30 870*870 ≤35 498 23 ≥0.8 2.2 3046 3880*1250*1300 2920 700 1270 785
X_M^AG40/870−U_K^B 40 623 29 3593 4270*1250*1300 3300
X_M^AG50/870−U_K^B 50 789 37 4057 4790*1250*1300 3820
X_M^AG60/870−U_K^B 60 955 45 4597 5310*1250*1300 4340
X_M^AG70/870−U_K^B 70 1121 53 5136 5830*1250*1300 4860
X_M^AG80/870−U_K^B 80 1287 61 5636 6350*1250*1300 5380
X_M^AG50/1000−U_K^B 50 1000*1000 776 27 4 4352 4270*1500*1400 3350 780 1400 870
X_M^AG60/1000−U_K^B 60 943 33 4480 4700*1500*1400 3780
X_M^AG70/1000−U_K^B 70 1109 39 5263 5130*1500*1400 4210
X_M^AG80/1000−U_K^B 80 1275 45 5719 5560*1500*1400 4640
X_M^AG100/1000−U_K^B 100 1608 57 6555 6410*1500*1400 5490
X_M^AG120/1000−U_K^B 120 1941 69 7466 7260*1500*1400 6340
X_M^AG80/1250−U_K^B 80 1250*1250 ≤40 1560 29 5.5 10900 4830*1800*1600 3960 850 1740 995
X_M^AG100/1250−U_K^B 100 1975 37 11750 5440*1800*1600 4570
X_M^AG120/1250−U_K^B 120 2391 45 12600 6060*1800*1600 5180
X_M^AG150/1250−U_K^B 150 2911 55 13620 6820*1800*1600 5950
X_M^AG160/1250−U_K^B 160 3119 59 14470 7130*1800*1600 6255
X_M^AG200/1250−U_K^B 200 3847 73 15320 8200*1800*1600 7325
X_M^AG240/1250−U_K^B 240 4679 89 16170 9420*1800*1600 8550
X_M^AG250/1250−U_K^B 250 4783 91 17020 9570*1800*1600 8700
X_M^AG200/1500−U_K^B 200 1500*1500 3809 49 11 26120 7140*2200*1820 5870 1170 1990 1070
X_M^AG250/1500−U_K^B 250 4723 61 26930 7730*2200*1820 6860
X_M^AG300/1500−U_K^B 300 5637 73 28160 8720*2200*1820 7850
X_M^AG350/1500−U_K^B 350 6551 85 29600 10110*2200*1820 9090
X_M^AG400/1500−U_K^B 400 7618 99 31500 11260*2200*1820 10240
X_M^AG450/1500−U_K^B 450 8532 111 33400 12250*2200*1820 11230
X_M^AG500/1500−U_K^B 500 9446 123 33380 13240*2200*1820 12220
X_M^AG600/2000−U_K^B 600 2000*2000 11901 85 15 54164 13030*3000*2500 10610 1660 2000 1050
X_M^AG700/2000−U_K^B 700 13838 99 58300 14390*3000*2500 11920
X_M^AG800/2000−U_K^B 800 14945 107 62460 15770*3000*2500 13240
X_M^AG900/2000−U_K^B 900 17713 127 66620 17150*3000*2500 14560
X_M^AG1000/2000−U_K^B 1000 19651 141 70780 18530*3000*2500 15880
