Cooking Oil Industrial Filter Press SS316 Portable Filter Press In Pharmacy

Name: Cooking Oil Industrial Filter Press SS316 Portable Filter Press In Pharmacy
Brand: Yuwei
Price: 1 USD

China Cooking Oil Industrial Filter Press SS316 Portable Filter Press In Pharmacy wholesale

Brand Name : Yuwei

Model Number : YWGMZ

Certification : CE / ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 10-20 work days

Packaging Details : wooden case, bubble wrap

Product Name : Small SS Filter Press

Material : 304/316L

Feed Pressure : 0.6 MPa

Type : Fame and Plate

Plate Material : SS316/304

Filter Precision : 0.22/0.45 micron

Plate Shifting : Manual

Contorl Method : PLC

Beam : SS304/316

Close Method : Mechanical

Contact Now

Cooking Oil Industrial Filter Press SS316 Portable Filter Press In Pharmacy

Product description

The SS316 Portable Filter Press is suitable for filtration of liquids with concentration below 50%, low viscosity and less slag content, so as to meet the requirements of fine filtration and semi fine filtration such as purification, sterilization and clarification. This machine has large filtration area, large flow and large application range, so it is widely used in pharmacy, chemical, food ,Cooking Oil Industrial and other industries. It is applied to the filtration of pharmaceutical injections in pharmaceutical factories, and the effect is very good.

Working principle of SS316 Portable Filter Press:

The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate pass through the filter media and then discharged from the outlet. The solid will become cakes. Thus realize solid -liquid separation.

Advantages of SS316 Portable Filter Press:

Low cake moisture
Food grade,clean and sanitary
Resist high temperature and corrosion
Good sealing effect can perfectly avoid leakage

Specification

Model	Filter area (m²)	Plate size (mm)	Chamber volume (L)	Number plate (pcs)	Plate NO. (pcs)	Filtration pressure	Dimension(mm)
BAQ1/320	1	320*320	13	4	5	0.6MPa	1050700680
BAQ2/320	2		25	9	10		1405700680
BAQ3/320	3		38	14	15		1650700680
BAQ4/450	4	450*450	51	9	10		1680880900
BAQ6/450	6		76	14	15		1980880900
BAQ8/450	8		102	19	20		2180880900
BAQ10/450	10		122	24	25		2430880900
BAQ12/450	12		152	29	30		2680880900
BAY4/450	4		51	9	10		2030880900
BAY6/450	6		76	14	15		2280880900
BAY8/450	8		102	14	15		2530880900
BAY10/450	10		122	19	20		2780880900
BAY12/450	12		152	29	30		3030880900
BAY15/630	15	630*630	189	18	19		26309501010
BAY20/630	20		250	24	25		29309501010
BAY30/630	30		377	37	38		35809501010
BAY30/800	30	725	442	22	23		315013001300
BAY40/800	40		595	30	31		363013001300
BAY50/800	50		748	38	39		411013001300

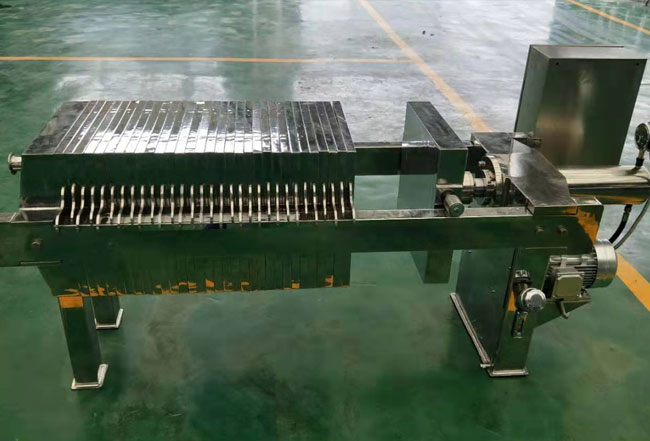

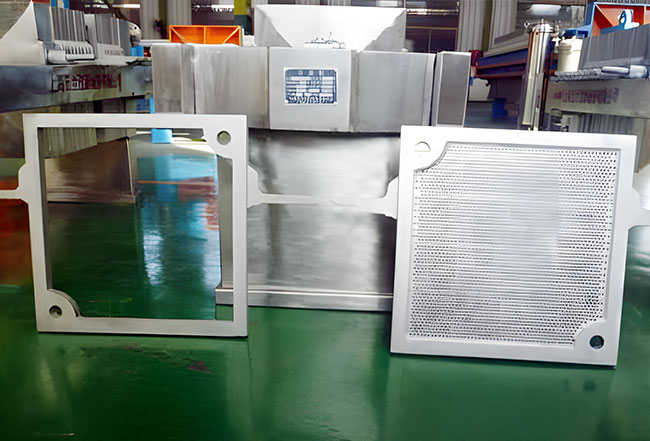

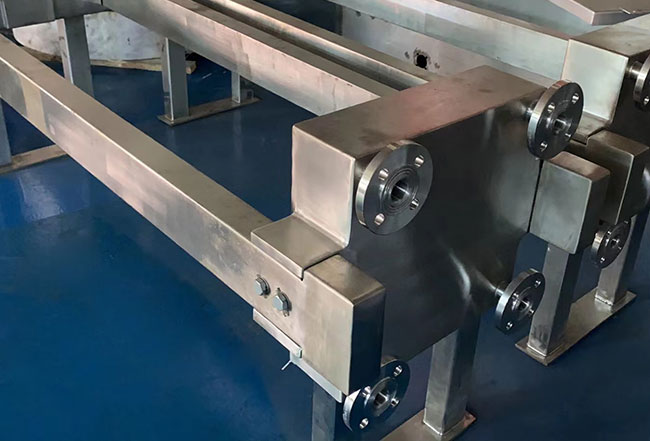

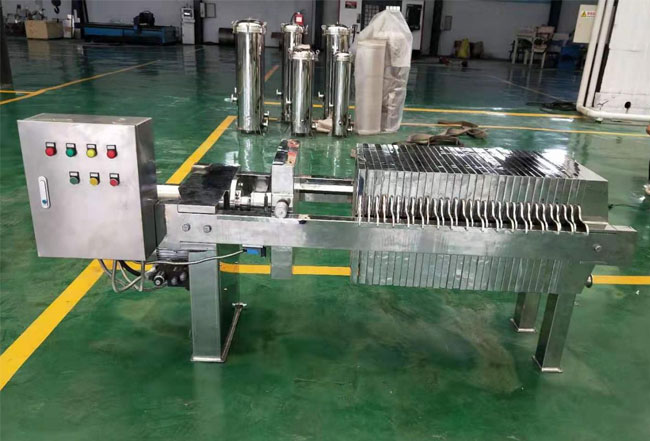

Product display

Cooking Oil Industrial Filter Press SS316 Portable Filter Press In Pharmacy

Application

Pharmacy industry:
Antibiotics, Vitamins, API, traditional Chinese medicine, preparation, oral liquid, pharmaceutical intermediate, etc.
Wine industry:
Beer ,wine,liquor,Liqueur,yellow wine, sake, fruit wine, medicinal liquor, etc.
Food and beverage industry:
Fruit juice, dairy products, tea drinks, syrup,honey, sucrose, vinegar, soy sauce, olive oil, tea oil and other edible oil, medicinal oil, etc.
Biological industry:
Oral liquid, gelatin, seaweed glue, synthetic plasma, plant extract, food additive, enzyme preparation, etc.
Especially adapt for Cooking Oil Industrial
